Configuration

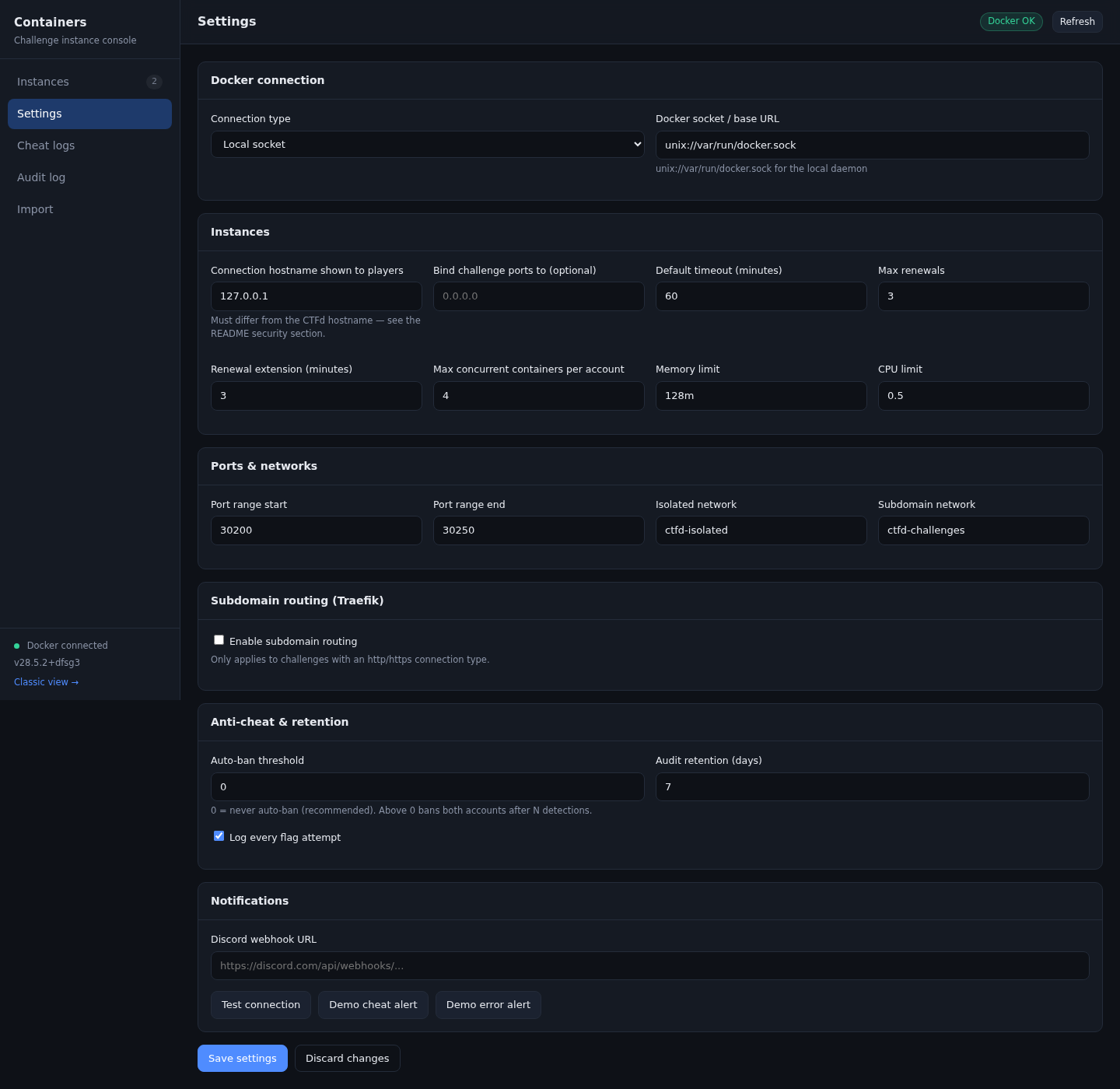

All settings live in Admin, Containers, Console, on the Settings tab. They are stored in the container_config table and take effect immediately. No restart is needed, except when you change the Docker connection and the new endpoint is unreachable.

Docker connection

Setting	Default	Notes
Connection type	Local socket	local uses the mounted socket. ssh uses a remote daemon.
Docker socket / base URL	unix://var/run/docker.sock	For a TCP daemon use tcp://host:2376.
SSH host	empty	Only for the ssh connection type.
SSH user	root	Must be able to reach the Docker socket on the remote host.
SSH port	22
Known hosts entry	empty	A single line, for example host ssh-ed25519 AAAA....

When you save an SSH connection, the plugin writes the key, a known_hosts entry, and an ssh_config block under ~/.ssh inside the CTFd container, then reconnects. All of these values are validated before they are written, so a newline cannot be used to inject extra SSH options.

The dependency here is docker-py, which speaks SSH itself. A plain SSH daemon on the challenge host is enough, and it avoids exposing the Docker API port.

Instances

Setting	Default	Notes
Connection hostname shown to players	localhost	Must be reachable from the player's browser.
Bind challenge ports to	empty (all interfaces)	Set a specific IP to publish on one interface only.
Default timeout	60	Minutes before the container is stopped.
Max renewals	3	How many times a player may extend their instance.
Renewal extension	5	Minutes added per extension.
Max concurrent containers per account	3	Applies per team in team mode, per user in user mode.
Memory limit	512m	Docker memory limit for every challenge container.
CPU limit	0.5	In cores. 1.5 means one and a half cores.

Connection hostname is the most important setting. Browsers send cookies to every port on a hostname, so if challenge containers share a hostname with CTFd, a challenge with a remote code execution bug can read the CTFd session cookie. Use a separate hostname, a separate domain, or a separate IP. The security document covers this in more detail.

Ports and networks

Setting	Default	Notes
Port range start	30000
Port range end	31000
Isolated network	ctfd-isolated	Network used for host port challenges.
Subdomain network	ctfd-challenges	Network used when Traefik routes the challenge.

The plugin creates the isolated network on demand and sets com.docker.network.bridge.enable_icc=false on it, which stops containers from reaching each other directly.

Size the port range for the number of simultaneous containers you expect. The console shows the number of free ports on the Instances tab. If the range runs out, Fetch Instance returns an error instead of starting a container.

Subdomain routing (Traefik)

Setting	Default	Notes
Enable subdomain routing	off	Only applies to challenges whose connection type is http, https, or web.
Base domain	empty	For example challenges.example.com. A wildcard DNS record is required.
Traefik entrypoint	web	The entrypoint Traefik listens on.
Use TLS	off	Adds the tls=true router label and shows https:// links.

When subdomain routing is enabled for a challenge, no host port is published at all. Traefik reaches the container over the Docker network instead, so the port range is not consumed.

Each instance gets a random single level subdomain such as c-9f2a1b3c4d5e6f70.challenges.example.com. A single level name is used because free wildcard certificates, Cloudflare in particular, only cover one level.

For challenges with multiple internal ports, the primary port gets the base subdomain and each additional port gets a -port suffix:

80   -> c-9f2a1b3c4d5e6f70.challenges.example.com
8080 -> c-9f2a1b3c4d5e6f70-8080.challenges.example.com

Requirements:

• Traefik running with the Docker provider enabled and pointed at the same network you configure here.
• A wildcard DNS record for the base domain.
• Challenge containers attached to that network, which the plugin does.

See Subdomain routing for a deployment walkthrough.

Anti-cheat and retention

Setting	Default	Notes
Auto-ban threshold	0	0 means never ban automatically.
Log every flag attempt	on	Turn off on very large events to reduce database writes.
Audit retention	7	Days that stopped, solved, and errored instance records are kept.

The threshold counts detections on the same challenge for the same account. When the count reaches the threshold, both the submitting account and the flag owner are banned. Because submitting somebody else's flag is trivial to do on purpose, the default is 0 and banning is an explicit decision. The anti-cheat document explains the reasoning.

Notifications

Setting	Default	Notes
Discord webhook URL	empty	Optional. Used for flag reuse alerts and provisioning errors.

Three buttons send a test message: Test connection, Demo cheat alert, and Demo error alert. They use the URL currently typed in the field, so you can validate it before saving.

Discord is the only notification target. The payload is a standard webhook embed, so a compatible endpoint that accepts the same JSON also works.

Saving settings

The save button validates every field before it writes anything:

• Numbers are range checked. A port range where start is greater than end is rejected.
• Hostnames are checked against a safe character set.
• Booleans are normalized to true or false.
• Keys that are not part of the documented list are ignored and reported back.

If some values were rejected, the response lists them and the rest are saved. The console shows the notes as a notification.

Configuration reference

Key	Type	Default
docker_type	local or ssh	local
docker_socket	string	unix://var/run/docker.sock
connection_host	hostname	localhost
port_bind_ip	hostname or empty	empty
port_range_start	int	30000
port_range_end	int	31000
default_timeout	int, minutes	60
max_renewals	int	3
renew_extension_minutes	int, minutes	5
max_memory	string	512m
max_cpu	float	0.5
container_max_concurrent_count	int	3
isolated_network	string	ctfd-isolated
subdomain_enabled	bool	false
subdomain_base_domain	hostname	empty
subdomain_network	string	ctfd-challenges
subdomain_entrypoint	string	web
subdomain_tls	bool	false
anticheat_autoban_threshold	int	0
anticheat_log_all_attempts	bool	true
audit_retention_days	int	7
background_jobs_enabled	bool	true
container_discord_webhook_url	string	empty
