Subdomain Routing Guide for CTFd Containers Plugin

1. Architecture Overview

Traditionally, container challenges are accessed via HOST:PORT (e.g., ctf.example.com:30001). Subdomain routing allows access via unique URLs (e.g., https://c-a1b2c3d4.ctf.example.com) without exposing ports on the host server.

NOTE

Why this architecture? This setup uses Cloudflare Tunnel + Traefik instead of simple port forwarding or direct Nginx to HIDE the Real Server IP. If exposing the real IP were acceptable, this could be much simpler. However, to protect the infrastructure from DDoS and direct attacks, we route all traffic through Cloudflare's Edge Network.

Traffic Flow:

1. User visits https://c-a1b2c3d4.example.com
2. Cloudflare DNS resolves to Cloudflare Tunnel.
3. Cloudflare Tunnel forwards traffic to the traefik container.
4. Traefik reads the Host header (c-a1b2c3d4.example.com), looks up the active Docker container with the matching UUID label, and routes the request to that container's internal port.

It is crucial to understand that the CTFd Plugin does NOT route traffic. It only "tags" containers. The routing infrastructure (Traefik + Cloudflare) does the rest.

Components & Roles

Component	Role	Description
CTFd Plugin	Tagging	Generates a subdomain (e.g., c-abc12345) and attaches Docker labels to the challenge container. Tell Docker: "This container owns c-abc12345".
Traefik	Routing	The "Traffic Cop". It listens to Docker events. When it sees a container with the label traefik.http.routers..., it dynamically creates a route for it.
Cloudflared	Ingress	The "Tunnel". It safely exposes Traefik (port 80) to the public internet via Cloudflare Edge.

2. Components

• Cloudflare Tunnel (cloudflared): Exposes the local Traefik service to the internet without opening ports on your router/firewall. Handles SSL termination.
• Traefik: A modern reverse proxy that listens to Docker events. It automatically reconfigures routing rules when a challenge container starts or stops.
• CTFd Plugin: Generates random subdomains and assigns specific Traefik labels to Docker containers when they are created.

3. Configuration Steps

Step 1: Docker Compose Setup

The setup depends on where your challenges run:

Scenario A: Local (All-in-One)

If CTFd and challenges run on the same server:

1. Example compose file: docker-compose.samehost.yml.
2. Ensure traefik and ctfd share the ctfd-network.
3. Settings: Traefik and Cloudflared must be running in this compose file.

Scenario B: Remote (SSH)

If CTFd runs on Server A, but challenges run on Server B:

1. Server A (CTFd): Does NOT need Traefik/Cloudflared for challenges (only for itself if needed).
2. Server B (Challenges): MUST run traefik and cloudflared.
   • Example compose file: docker-compose.remote.yml.
   • Create a docker-compose.yml on Server B with ONLY traefik and cloudflared.
   • Network: Must enable ctfd-network so Traefik can see containers spawned by the plugin.
   • Settings: Plugin communicates via SSH, but Traefik routes locally on Server B.

• Traefik Version (Both cases): Use v2.11 (stable).
• Docker API (Both cases): Set DOCKER_API_VERSION=1.45 environment variable for Traefik to work with modern Docker Engines (v25+).
• Network: All services (ctfd, traefik, challenge containers) must share a Docker network (e.g., ctfd-network).

Step 2: Cloudflare Setup (Critical)

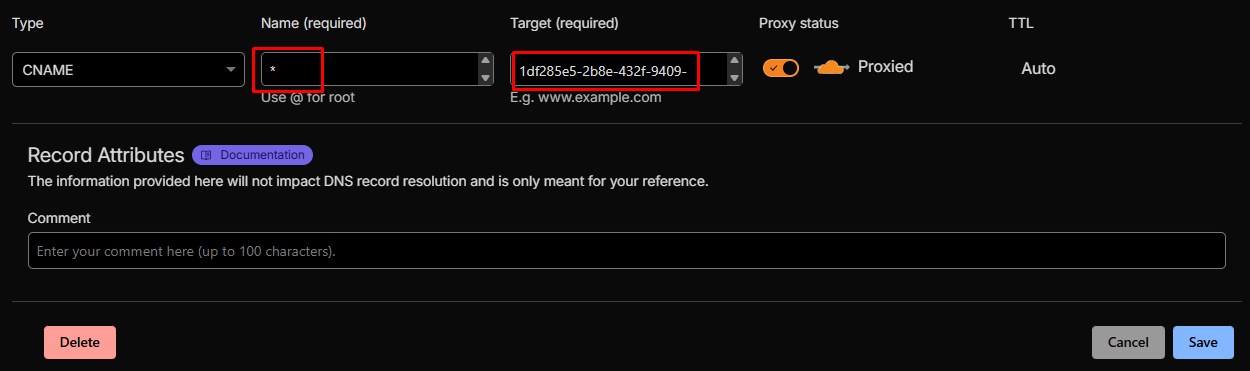

1. DNS Record:

   • Go to Cloudflare Dashboard -> DNS.
   • Create a CNAME record:
     • Name: * (Wildcard) - Required for Cloudflare Free SSL to work
     • Target: Your Tunnel URL (e.g., uuid.cfargotunnel.com) or your server domain if managing tunnel differently.
     • Proxy Status: On (Orange Cloud).

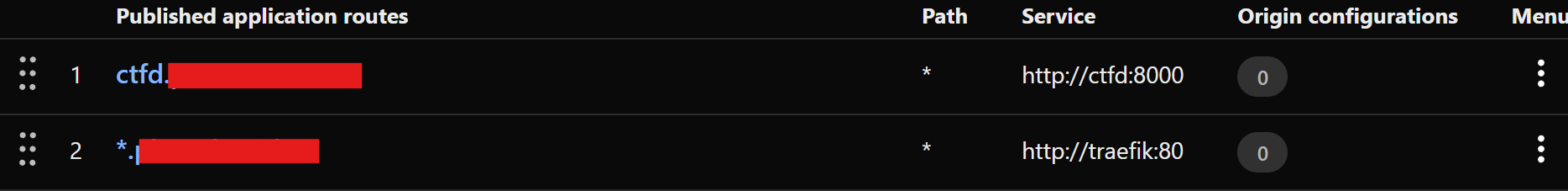

2. Tunnel Configuration (Zero Trust Dashboard):

   • Add a Public Hostname route:
     • Public Hostname: *.example.com (Wildcard)
     • Service: http://traefik:80
   • Note: This tells Cloudflare to send ANY subdomain request for your domain to the Traefik container.

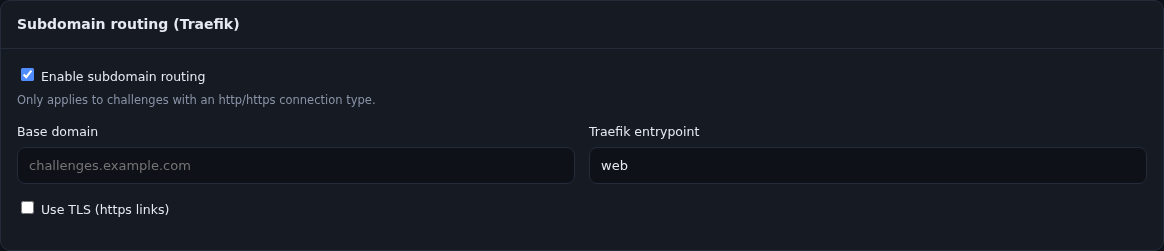

Step 3: Plugin Settings (CTFd Admin)

Go to Admin Panel -> Containers -> Settings:

1. Enable Subdomain Routing: Checked.
2. Base Domain: Enter your root domain (e.g., example.com).
   • Do not include challenge. prefix if using Cloudflare Free plan (SSL limitations).
3. Docker Network Name: ctfd-network (Must match the network name in docker-compose.yml).

4. How It Works Internally

When a user starts a web challenge:

1. Plugin generates a UUID (e.g., ac3fdbd9).
2. Plugin formats subdomain: c-ac3fdbd9.
3. Plugin creates a Docker container with labels:

   traefik.enable: "true"
   traefik.http.routers.r1.rule: "Host(`c-ac3fdbd9.example.com`)"

4. Traefik detects the new container and creates a route.

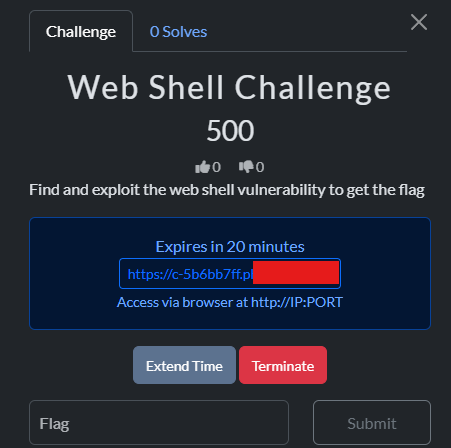

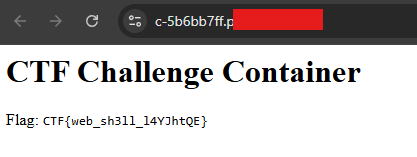

5. Plugin returns the URL https://c-ac3fdbd9.example.com to the user.

5. Troubleshooting

404 Page Not Found (from Cloudflare)

• Cause: DNS record missing.
• Fix: Create * CNAME record in Cloudflare DNS.

404 Page Not Found (from Traefik)

• Cause: Traefik is running but cannot see the container or the route.
• Fix:
  • Check if Traefik sees Docker: docker logs ctfd-traefik-1. Look for API version errors.
  • Check container labels: docker inspect <container_id>.

SSL Handshake Failure / Privacy Error

• Cause: Using multi-level subdomain (e.g., abc.challenge.domain.com) on Cloudflare Free Plan.
• Fix: Switch to single-level format (c-abc.domain.com) by updating Plugin Settings "Base Domain" to root domain.

Docker API Error ("client version is too old")

• Cause: Mismatch between Traefik's default API version and Host Docker Engine.
• Fix: Add DOCKER_API_VERSION=1.45 (or higher) to Traefik environment variables in docker-compose.yml.

Settings Not Saving

• Cause: Frontend-Backend communication issue with unchecked checkboxes.
• Fix: Already patched in assets/view.js and template. Clear browser cache.
